1. Hot-fix rhinestone positioning and drilling
2. Pattern punching and output
3. Leather pattern punching
4. Garment PVC template making
5. Garment pattern jig making
6. Leather die-cutting template making
7. Dust collection device: The cutting of sheet metal generates a lot of dust, and the dust collection device removes the dust during the operation, keeping the work area clean.
8. Original imported guide rails, imported CNC motors, and imported ultra-high-speed spindles ensure precise position control.
9. Original linear high-speed lifting and lowering motor makes tool drawing and feeding more precise and faster.

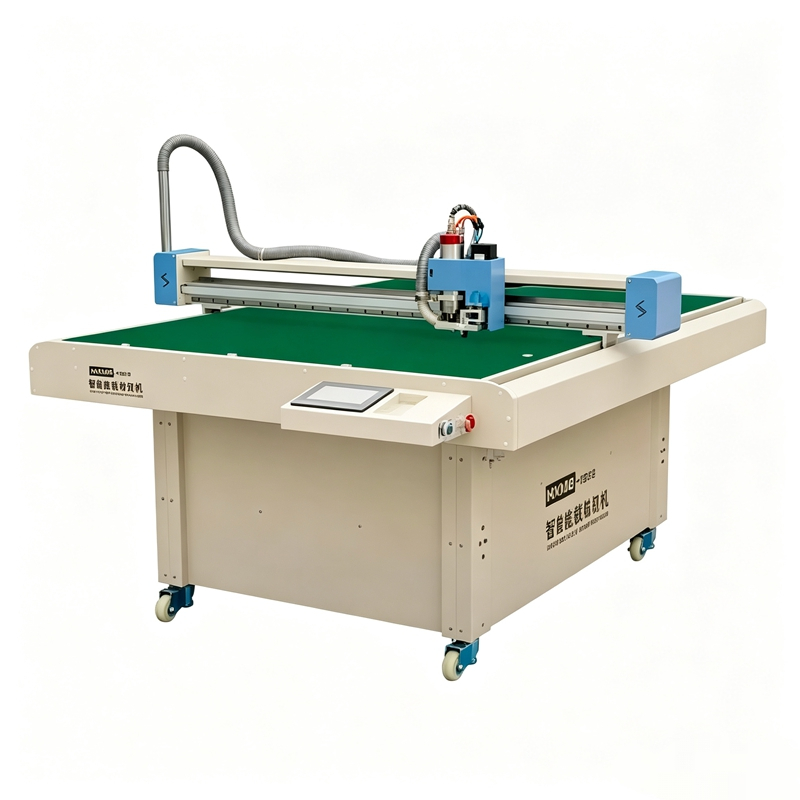

Model | A-15-12 |
Working Area | 1500mm-1200mm |
Functional | Paper pattern and pvc template cutting |
Material | Pvc ipet iacrylic iepoxy plate iplastic board, etc kraft paper iwhite cardboardichicken paper, etc |
Cutting Mode | 1mm-6mm milling cutter,tungsten steel cutter |
Cutting Speed | drawing≤1300mm/scutting≤1100mm/s |
Thickness | 0.5mm-6mm |

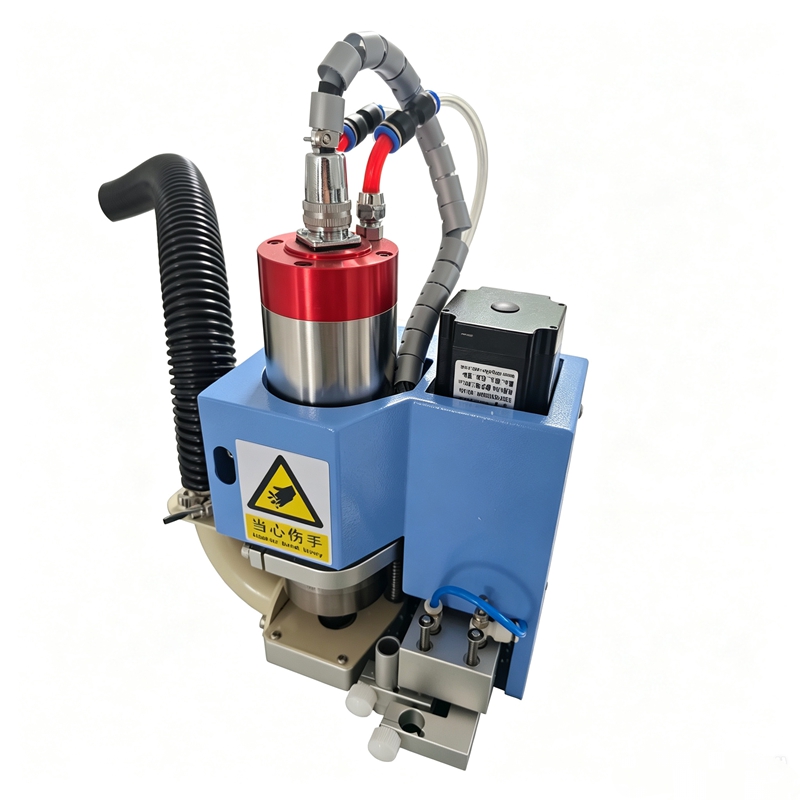

Spindle Motor | 1.2kw water-cooled motor, maximum speed:40000r/min |

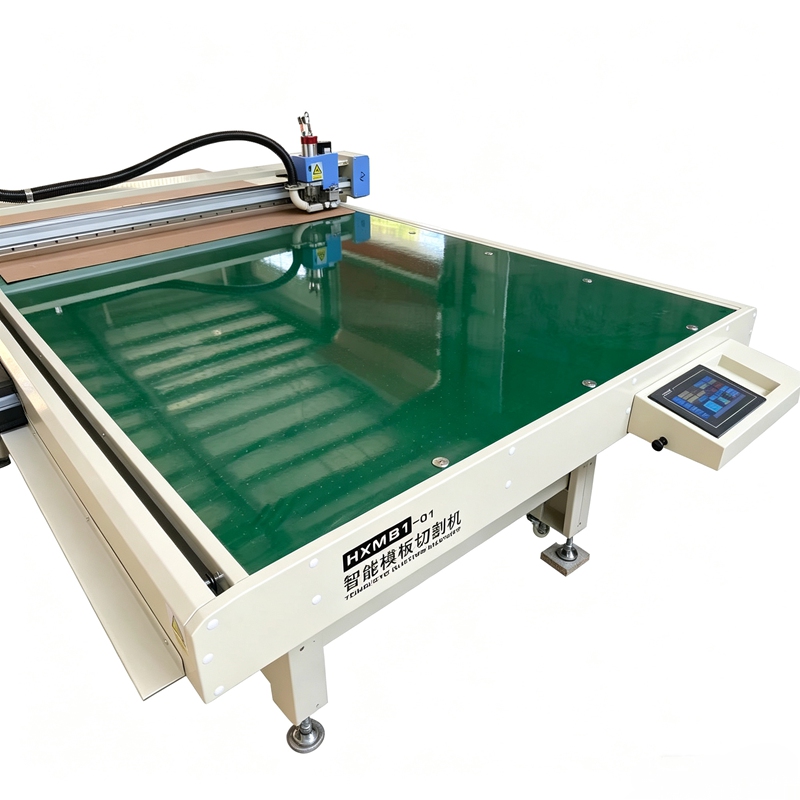

Working Table | High strength aluminum honeycomb plate |
Material Fixation | Air motor + pneumatic pressure plate + non-slip felt |
Transmission | High precision linear guide + high speed hybrid servo motor |

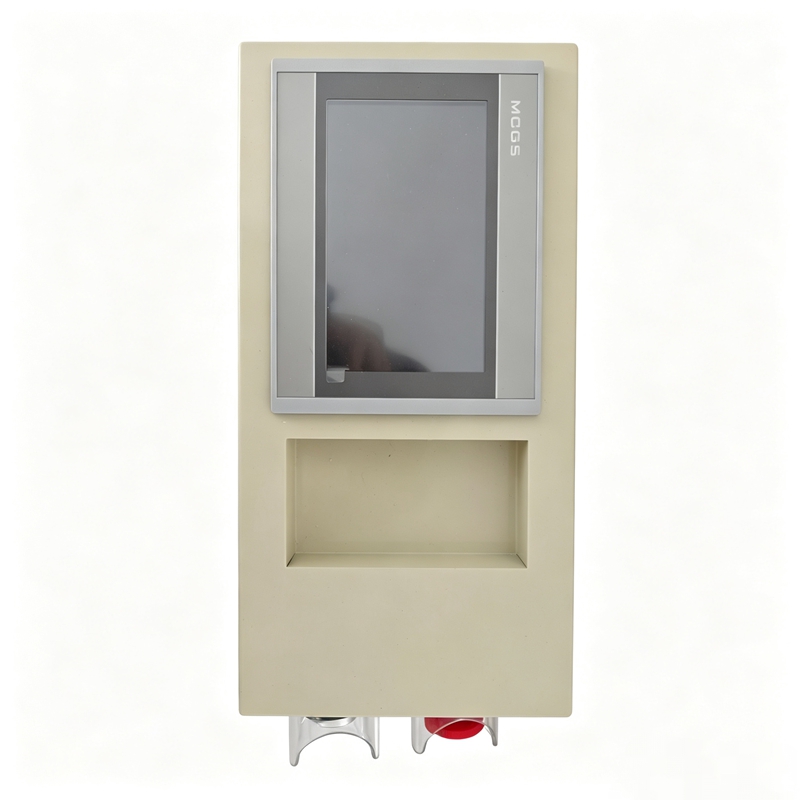

Operation Panel | 7-inch plc interface intelligent hd touch screen |
Computer System | WIN XP IWIN 7IWIN 81WIN 10 |
File Format | PLT, HPGL, DXF, ARR FORMAT FILES |
Supply Voltage | 220v/50hz 3.5kw |
Transmission Port | ETHERNETPORT |
Machine Size | 2100mm*1670mm*1100mm |
