Product Name | High-Speed Continuous Ink Supply Plotter |
Model | A-125-806 | A-165-806 | A-185-806 | A-205-806 |
Print Width | 125cm | 165cm | 185cm | 205cm |
Max feed Width | 130cm | 170cm | 190cm | 210cm |
Print Speed | Two-way high-speed, 100 square meters per hour. |
Print format | HPGL drawing language, compatible with domestic and foreign CAD software, special format can be customized |
Cutting paper function | nothing |
Resolution ratio | 150-6000DPI |
Spray nozzle type | TX806 Epson tx806 |
Spray head protection | Automatic protection of ink car reset |
Ink bottle capacity | 230ML |

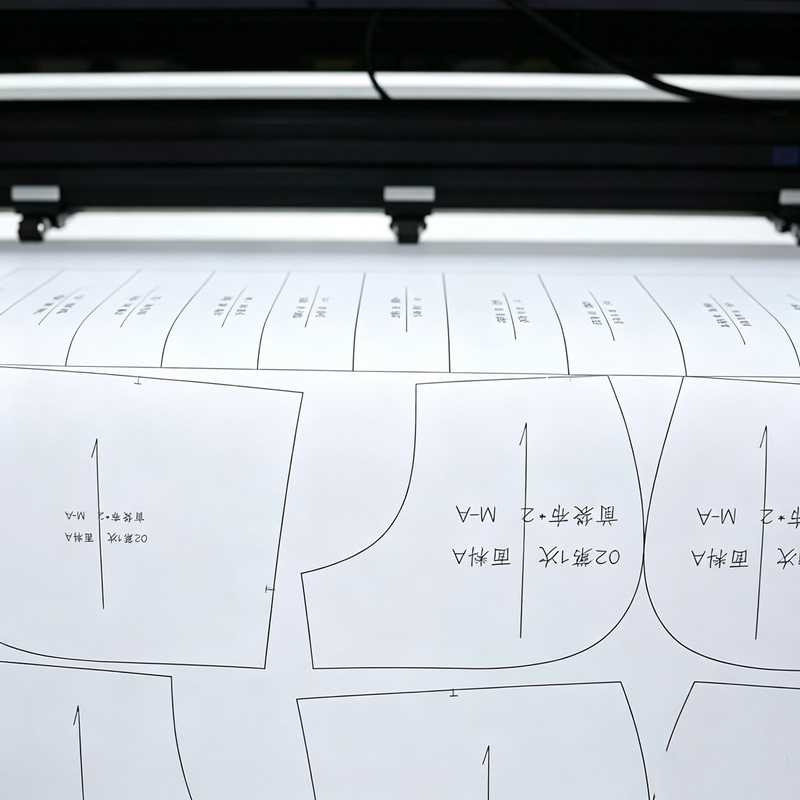

Line quality | Clear, smooth, seamless, optional 1-5 thickness lines |
Sprinkler cleaning | Automatic cleaning before printing |

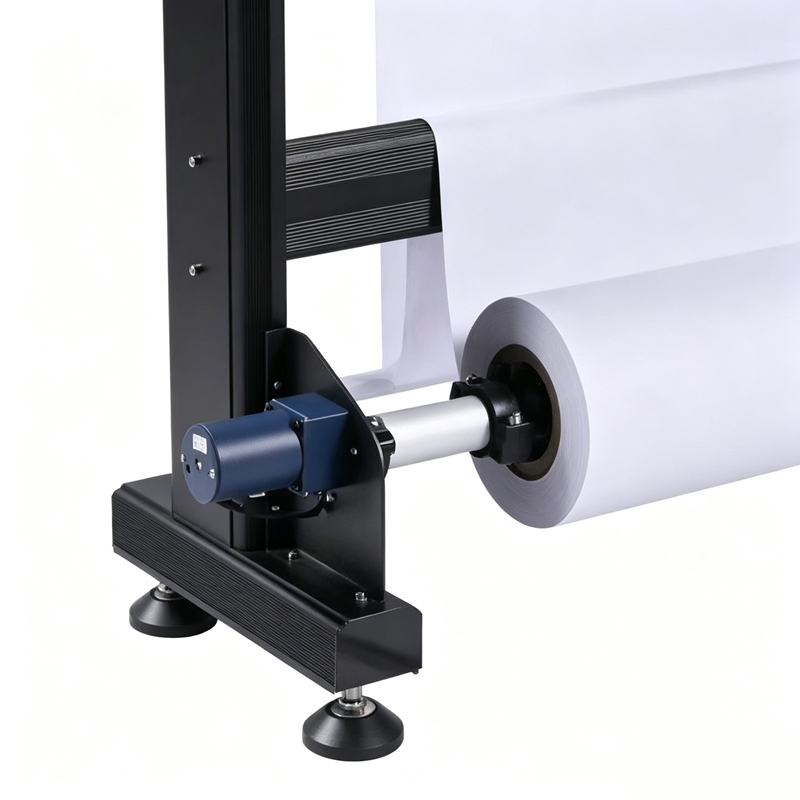

Paper loading system | The front height-adjustable device supports 28 cm diameter rolls of paper. |
Paper feeding system | The concealed infrared precision paper-feeding system can read 700 meters without deviation. |
Receiving paper method | Automatic feeding of paper, no need for supervision. |
Print media | 40-80 grams, ordinary cylinder printing paper; 80-25 grams of kraft paper per sheet |
Communication interface | Network port |
Supply Voltage | 220v/50hz |

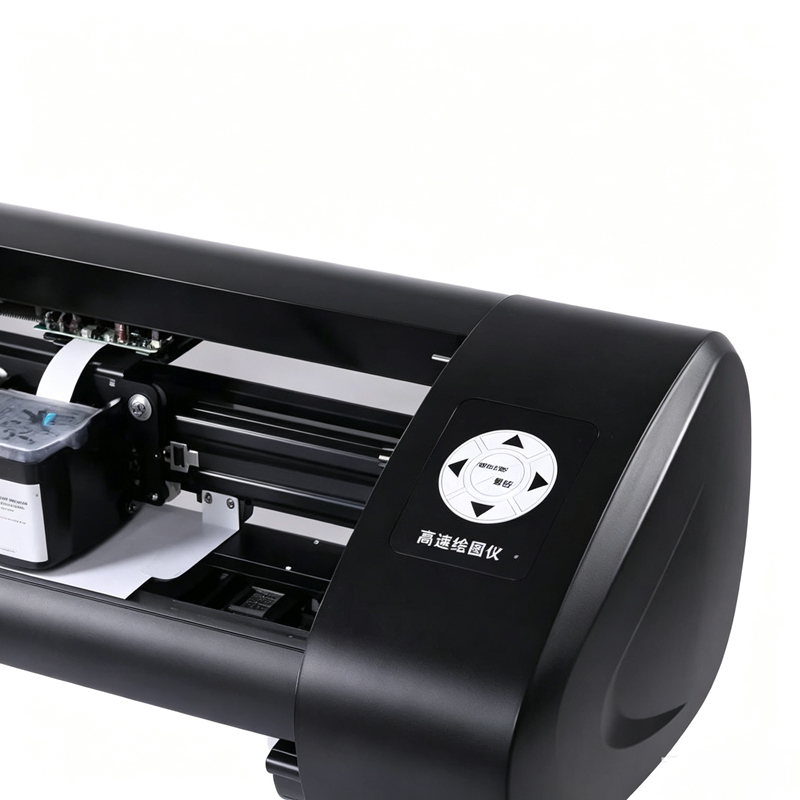

Key panel | Button operation, simple, convenient, durable |
Machine structure | Mold standard aluminum alloy structure, high machine precision, long life |
Output Center | No driver required, fully automatic online, supports multiple separate control, ultra-wide automatic pagination |
